Arista 7050Q


Arista 7050Q

Arista Products
Arista 7050Q
Arista 7050
16xQSFP+ & 8xSFP+ switch, front-to-rear airflow and dual 460W AC power supplies
#DCS-7050Q-16-F
Contact us for Pricing!
Arista 7050
16xQSFP+ & 8xSFP+ switch, rear-to-front airflow and dual 460W AC power supplies
#DCS-7050Q-16-R
Contact us for Pricing!
Arista 7050
16xQSFP+ & 8xSFP+ switch, no fans, no psu (requires fans and psu)
#DCS-7050Q-16#
Contact us for Pricing!
Arista 7050
16xQSFP+ & 8xSFP+ switch, 50GB SSD, no fans, no psu (requires fans and psu)
#DCS-7050Q-16-D#
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

The Arista 7050 series 40G switches offer wire speed layer 2/3/4 performance with 16 ports of 40GbE or 64 ports of 10GbE in a compact 1RU chassis. The 7050Q-16 switch offers 16 QSFP+ interfaces and an additional 8 SFP+ ports shared with 2 QSFP+ ports for flexible support of 10GbE short and long reach interfaces.

Each QSFP+ supports wire speed 40GbE and can also operate as four independent 10GbE ports to provide a total of 64 10GbE ports. The Arista 7050Q offers latency of 800 ns in cut-through mode, and a shared 9 MB packet buffer pool that is allocated dynamically to ports that are congested. With typical power consumption of less than 3 watts per 10G port, the 7050Q 40G switches provide industry leading power efficiency for the data center. An optional built-in SSD supports advanced logging, data captures and other enhanced services directly on the switch.

The 7050Q switch shares a common architecture with other members of the Arista 7050 Series providing a consistent level of performance, scale and resilience. The 7050Q delivers line rate 40GbE performance enabling scale out of Leaf-Spine designs with 40GbE links between the tiers and direct connection to 40Gb servers and storage devices. The Arista 7050Q-16 provides scalability improvements in dense leaf and spine architectures with support for 40GbE for link aggregation and a reduction in link serialization delays.

Arista EOS

The Arista 7050Q switches run the same Arista EOS software as all Arista products, simplifying network administration. With Arista EOS, advanced monitoring and automation capabilities such as Zero Touch Provisioning, VM Tracer and Linux based tools can be run natively on the switch.

Arista EOS is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic. Built on top of a standard Linux kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database. This multi-process state sharing architecture provides the foundation for in-service-software updates and self-healing resiliency. Several Linux based tools can be run directly on the switch, running on a powerful dual-core x86 CPU subsystem.

Product Highlights


Performance

  • 7050Q-16: 16x40GbE and 8x10GbE ports
  • 1.28 terabits per second
  • 960 million packets per second
  • Wire speed L2 and L3 forwarding

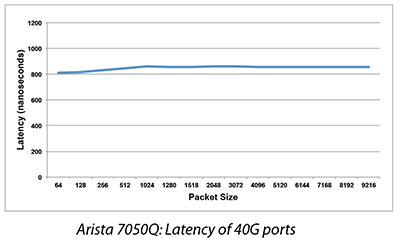

  • 800ns to 850ns latency

Data Center Optimized Design

  • Typical power draw less than 12W per port
  • 1+1 redundant & hot-swappable power
  • N+1 redundant & hot-swappable fans

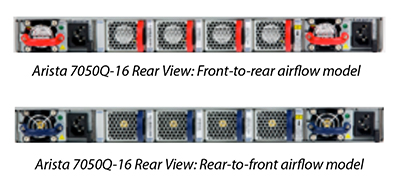

  • Front-to-rear or rear-to-front cooling

Cloud Networking Ready

  • 128K MAC entries
  • 16K IPv4 Routes
  • 32K IPv4 Host Routes
  • 8K IPv6 Routes
  • 8K Mroutes
  • 9MB Dynamic Buffer Allocation

Resilient Control Plane

  • Dual-core x86 CPU
  • 4GB DRAM
  • 2GB Flash
  • User applications can run in a VM

Built-in Storage

  • Solid State Drive option
  • Store logs and data captures
  • Network boot nodes from the switch
  • Linux tools with no limitations

Advanced Provisioning & Monitoring

  • Zero Touch Provisioning (ZTP)
  • VM Tracer - host view
  • VM Tracer - auto VLANs
  • sFlow
  • Self-configure and recover from USB

Arista Extensible Operating System

  • Single binary image for all products
  • Fine-grained modularity
  • Stateful Fault Containment (SFC)
  • Stateful Fault Repair (SFR)
  • Access to Linux tools
  • Extensible platform

Benefits:


High Availability

The Arista 7050 series switches were designed for high availability from both a software and hardware perspective. Key high availability features include:

  • 1+1 hot-swappable power supplies and four N+1 hot-swap fans
  • Color coded PSU’s and fans - common to Arista 1RU devices
  • Live software patching
  • Self healing software with Stateful Fault Repair (SFR)
  • Up to 16 40GbE ports per link aggregation group (LAG)
  • Multi-chassis LAG for active/active L2 multipathing
  • 32-way ECMP routing for load balancing and redundancy

Dynamic Buffer Allocation

In cut-through mode, the Arista 7050 40G switches forward packets with a latency of 800 to 850 nanoseconds. Upon congestion, the packets are buffered in shared packet memory that has a total size of 9 MBytes. Unlike other architectures that have fixed per-port packet memory, the 7050 switches use Dynamic Buffer Allocation (DBA) to allocate up to 5MB of packet memory to a single port for lossless forwarding.

Provisioning Tools and Built-in Storage

The 7050 series switches offer advanced capabilities for network provisioning. With ZTP, the switch can be automatically provisioned through a centralized management system with a dynamically generated configuration and preferred boot image. A built-in 50GB SSD is available as an option from the factory. The integrated storage allows for a whole new family of applications that can be run from the network itself. This includes having the switch be a PXE boot server, store syslogs for audit and compliance right on the switch, capturing and saving data packets via tcpdump and Linux based services such as DHCP and Precision Time Protocol (PTP).

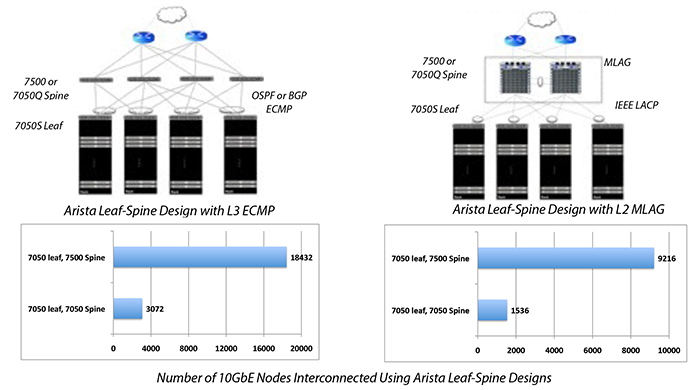

Cloud Network Scale: Up to 18,000 10GbE nodes using standardized protocols

Number of 10GbE Nodes Interconnected Using Arista Leaf-Spine Designs

Features:


Layer 2 Features

  • 128K L2 Forwarding Entries
  • 802.1w Rapid Spanning Tree
  • 802.1s Multiple Spanning Tree Protocol
  • Rapid Per VLAN Spanning Tree (RPVST+)
  • 4096 VLANs
  • Q-in-Q
  • 802.3ad Link Aggregation/LACP
    • 16 ports/channel
    • 64 groups per system
  • Multi-Chassis Link Aggregation (MLAG)
    • Uses IEEE 802.3ad LACP
    • 32 ports per MLAG
  • 802.1AB Link Layer Discovery Protocol
  • Port Mirroring (4 active mirroring sessions)
  • 802.3x Flow Control
  • Jumbo Frames (9216 Bytes)
  • IGMP v1/v2/v3 snooping
  • Storm Control
  • Private VLANs

Layer 3 Features

  • 16K IPv4 Routes
  • 32K IPv4 Host Routes
  • 8K IPv4 Multicast Routes
  • 8K IPv6 Routes
  • 4K IPv6 Multicast Routes
  • Routing Protocols: OSPF, OSPFv3, BGP, MP-BGP, IS-IS, and RIPv2
  • 32-way Equal Cost Multipath Routing (ECMP)
  • BFD
  • Route Maps
  • IGMP v2/v3
  • PIM-SM / PIM-SSM
  • Anycast RP (RFC 4610)
  • VRRP
  • Virtual ARP (VARP)
  • vrf
  • uRPF

Monitoring and Provisioning

  • Zero Touch Provisioning (ZTP)
  • Advanced Event Management suite (AEM)
    • CLI Scheduler
    • Event Manager
    • Event Monitor
    • Linux tools
  • Optional SSD for logging and data capture
  • Integrated packet capture/analysis with TCPDump
  • RFC 3176 sFlow
  • Restore & configure from USB
  • Blue Beacon LED for system identification
  • Software Defined Networking (SDN)
    • Openflow 1.0
    • Arista DirectFlow
    • eAPI

VM Tracer Feature Set

  • VMware vSphere support
  • VM Auto Discovery
  • VM Adaptive Segmentation
  • VM Host View

Security Features

  • Ingress / Egress ACLs using L2, L3, L4 fields
  • ACL Logging and Counters
  • Control Plane Protection (CPP)
  • DHCP Relay / Snooping
  • MAC Security
  • TACACS+
  • RADIUS

Quality of Service (QoS) Features

  • Up to 8 queues per port
  • Strict priority queueing
  • 802.1p based classification
  • Per-Priority Flow Control (PFC)
  • Data Center Bridging Extensions (DCBX)
  • 802.1Qaz Enhanced Transmissions Selection (ETS)*
  • DSCP based classification and remarking
  • Policing/Shaping
  • Rate limiting
  • Explicit Congestion Notification (ECN)

Network Management

  • CloudVision Task-Oriented Multi-Device CLI
  • 100/1000 Management Port
  • RS-232 Serial Console Port
  • USB Port
  • SNMP v1, v2, v3
  • Management over IPv6
  • Telnet and SSHv2
  • Syslog
  • AAA
  • Industry Standard CLI

Extensibility

  • Linux Tools
    • Bash shell access and scripting
    • RPM support
    • Custom kernel modules
  • Programmatic access to system state
    • Python
    • C++
  • Native KVM/QEMU support

Standards Compliance

  • 802.1D Bridging and Spanning Tree
  • 802.1p QOS/COS
  • 802.1Q VLAN Tagging
  • 802.1w Rapid Spanning Tree
  • 802.1s Multiple Spanning Tree Protocol
  • 802.1AB Link Layer Discovery Protocol
  • 802.3ad Link Aggregation with LACP
  • 802.3ab 1000BASE-T
  • 802.3z Gigabit Ethernet
  • 802.3ae 10 Gigabit Ethernet
  • 802.3ba 40 Gigabit Ethernet
  • RFC 2460 Internet Protocol, Version 6 (IPv6) Specification
  • RFC 4861 Neighbor Discovery for IP Version 6 (IPv6)
  • RFC 4862 IPv6 Stateless Address Autoconfiguration
  • RFC 4443 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification

SNMP MIBs

  • RFC 3635 EtherLike-MIB
  • RFC 3418 SNMPv2-MIB
  • RFC 2863 IF-MIB
  • RFC 2864 IF-INVERTED-STACK-MIB
  • RFC 2096 IP-FORWARD-MIB
  • RFC 4363 Q-BRIDGE-MIB
  • RFC 4188 BRIDGE-MIB
  • RFC 2013 UDP-MIB
  • RFC 2012 TCP-MIB
  • RFC 2011 IP-MIB
  • RFC 2790 HOST-RESOURCES-MIB
  • RFC 3636 MAU-MIB
  • RMON-MIB
  • RMON2-MIB
  • HC-RMON-MIB
  • LLDP-MIB
  • LLDP-EXT-DOT1-MIB
  • LLDP-EXT-DOT3-MIB
  • ENTITY-MIB
  • ENTITY-SENSOR-MIB
  • ENTITY-STATE-MIB
  • ARISTA-ACL-MIB
  • ARISTA-QUEUE-MIB
  • RFC 4273 BGP4-MIB
  • RFC 4750 OSPF-MIB
  • ARISTA-CONFIG-MAN-MIB
  • RFC 2787 VRRPv2MIB
  • MSDP-MIB
  • PIM-MIB
  • IGMP-MIB
  • IPMROUTE-STD-MIB
  • SNMP Authentication Failure trap
  • ENTITY-SENSOR-MIB support for DOM (Digital Optical Monitoring)
  • User configurable custom OIDs

* Supported in a future software release

Specifications:


Table Sizes
MAC Addresses 128,000
STP Instances 64 (MST)/511 (RPVST+)
IGMP Groups 50,000
ACLs 3,000
IPv4 Hosts 32,000
IPv4 Routes - Unicast 16,000
IPv4 Routes - Multicast 8,000
IPv6 Routes - Unicast 8,000
IPv6 Routes - Multicast 4,000
ECMP 32-way
Environmental Characteristics
Operating Temperature 0 to 40C
Storage Temperature -40C to 70C
Relative Humidity 5 to 95%
Operating Altitude 0 to 10,000 ft
Physical Characteristics
Size (WxHxD) 19” x 1.75” x 16”
(44.5 x 4.4 x 40.64 cm)
Weight 18 lbs (8.18 kg)
Power Supply Specifcations
  AC DC
Input Voltage 100-240AC 40-72V DC
Input Current 2.2-5.3A 12.8-7.1A
11.3A at -48V
Input Frequency 50/60Hz DC
Input Connector IEC 320-C13 AWG #16-12
Standards Compliance
EMI FCC Part 15 Class A
ICES-003 Class A
VCCI Class A
Safety IEC/UL/CSA/EN 60950
CE, UL, TUV Mark
Other ROHS-6 Compliant

* Typical power consumption measured at 25C ambient with 50% load

Specifcations
  7050Q-16
Ports 16 x QSFP+, 8 x SFP+
Total 40GbE Ports 16
Total 10GbE Ports 64
Total 1GbE Ports 8 (SFP/SFP+)
Throughput 1.28 Terabits/second
Packets/Second 960 Mpps
Latency 800 - 850ns (QSFP+)
800 - 1150ns (SFP+)
CPU Dual-Core x86
System Memory 4 Gigabytes
Flash Storage Memory 2 Gigabytes
Packet Buffer Memory 9MB (Dynamic Buffer Allocation)
SSD Storage (optional) 50 Gigabytes
100/1000 Mgmt Ports 1
RS-232 Serial Ports 1 (RJ-45)
USB Ports 1
Hot-swap Power Supplies 2 (1+1 redundant)
Hot-swappable Fans 4 (N+1 redundant)
Reversible Airfow Option Yes
Typical / Maximum Power Draw* 192W / 303W
Supported Optics and Cables
Interface Type SFP+ ports QSFP+ ports
40GBASE-SR4 - 100m (OM3) /150m (OM4)
40GBASE-XSR4 - 300m (OM3) /450m (OM4)
AOC-40G-Q-Q - 3m to 100m
40GBASE-CR4 - 0.5m to 7m QSFP+ to QSFP
40G-PLRL4 - 1km (1km 4x10G LR/LRL)
40G-UNIV   150m (OM3) / 150m (OM4) 500m (SM)
40G-LRL4 - 1km
40G-PLR4   10km (10km 4x10G LR/LRL)
40GBASE-LR4 - 10km
10GBASE-CR SFP+ to SFP: 0.5m-5m 0.5m - 5m QSFP+ to 4x SFP
10G-AOC 3m to 30m
10GBASE-SRL 100m -
10GBASE-SR 300m -
10GBASE-LRL 1km -
10GBASE-LR 10km -
10GBASE-ER 40km -
10GBASE-ZR 80km -
10G-DWDM 80km -
100TX 1G SX/LX/TX Yes -

Documentation:

Download the Arista 7050Q Datasheet (PDF).
