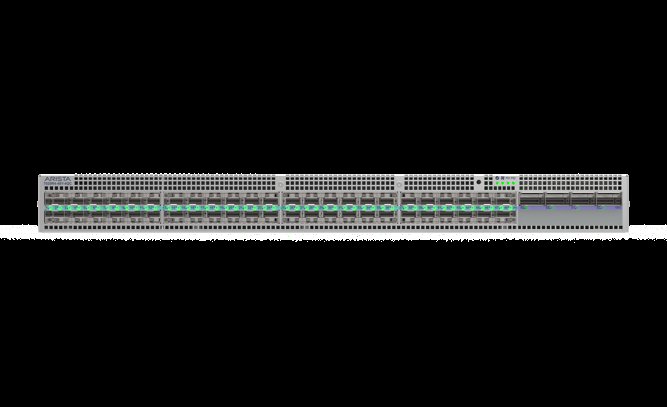

7020R4 Series Data Center Switch Router
The Arista 7020R4 Series is a portfolio of systems purpose-built to meet the needs of high performance edge applications, for data center leaf, service provider access and high end desktop applications such as broadcast media and advanced research.
The Arista 7020R4 Series is a portfolio of systems purpose-built to meet the needs of high performance edge applications, for data center leaf, service provider access and high end desktop applications such as broadcast media and advanced research.
As part of the R4 family, 7020R4 Series platforms share a common forwarding architecture with dynamic deep buffers for deterministic, lossless forwarding performance, scalable resources and rich functionality with Arista EOS.

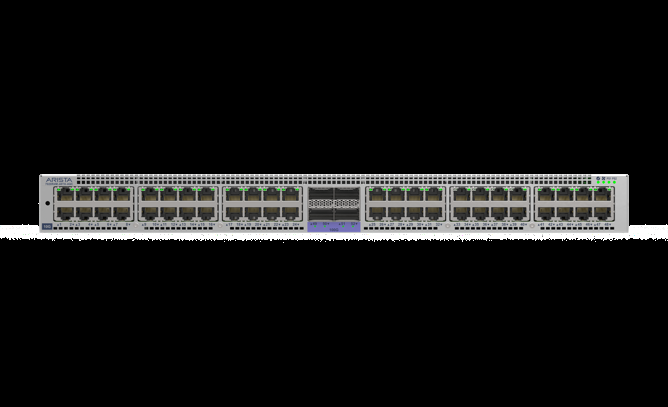

Available with a choice of 1G/10G/25G SFP or 1G/10G RJ45 ports, the 7020R4 Series enables highly scalable and secure network designs based on open networking standards including MPLS, Segment Routing and EVPN-VXLAN, while adding advanced capabilities including precision timing, FlexRoute™, Accelerated sFlow and Arista TunnelSec™ wire-speed strong encryption at layer 2 and layer 3.
The 7020R4 Series are ideal platforms for demanding lower speed workloads and enable flexible expansion, upgrade or simplification of existing infrastructure.
Features and Benefits
The capabilities that set 7020R4 Series apart.
System Scale and Performance
Port Configuration
Throughput
Cloud Grade Routing
Secure Internet Peering
Carrier Edge VPN Services
Talk to an Arista networking specialist
Get pre-sales help sizing and configuring 7020R4 Series for your network — from leaf/spine design to EOS and CloudVision integration.
Talk to a specialistTechnical Specifications
Hardware and software metrics extracted directly from the official Arista datasheet.
-
Power SupplyPWR-511 AC, PWR-511 DC
-
Input Voltage100-240V AC, -48 to -60V DC
-
Max Input Current6.3 - 2.3A (AC), 11.8A Max (-48V) (DC)
-
Input Frequency50/60Hz (AC), DC (DC)
-
Output Power500W
-
Efficiency93% Platinum (AC), 92% (DC)
-
Operating Temperature0 to 40˚C (32 to 104˚F)
-
Storage Temperature-40 to 70˚C (-40 to 158˚F)
-
Relative Humidity5 to 90%
-
Operating Altitude0 to 10,000 ft, (0-3,000m)
-
EMCFCC A, ICES-003 Issue 7, EN 55032:2015, EN IEC 61000-3-2:2019, EN 61000-3-3, KS C 9832, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2015 +A1 2020, EN 300 386, TEC/SD/DD/EMC-221, CNS 15936, BS EN 55032:2015+A11:2020, BS EN IEC 61000-3-2, BS EN 61000-3-3
-
ImmunityEN 55035:2017+A11:2020, EN 300 386, KS C9835, BS EN 55035:2017+A11:2020
Compare 7020R4 Series Series
Select the right scale for your network workload.

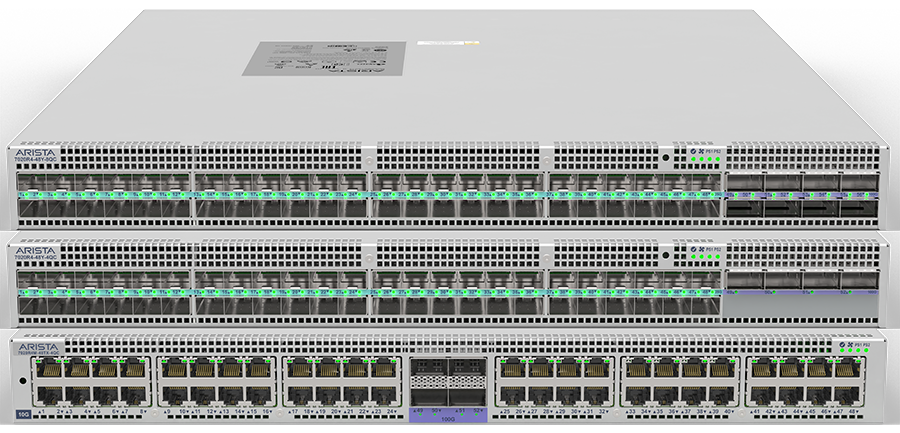

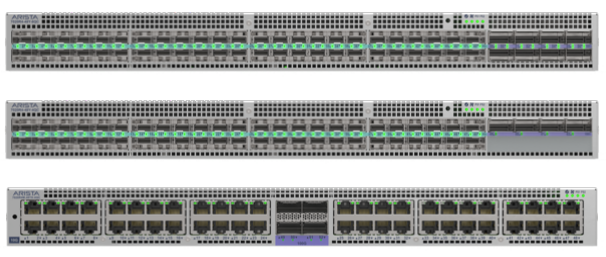

| Model Name | Max Capacity | Port Config | Action |
|---|---|---|---|
| 7020R4-48Y-8QC | 2 (4) Tbps | 8 x QSFP 100G, 48 x SFP25 | Get Quote |
| 7020R4M-48Y-8QC | 2 (4) Tbps | 8 x QSFP 100G, 48 x SFP25 | Get Quote |
| 7020R4-48Y-4QC | 1.4 (2.8) Tbps | 4 x QSFP 100G, 48 x SFP25 | Get Quote |
| 7020R4M-48Y-4QC | 1.4 (2.8) Tbps | 4 x QSFP 100G, 48 x SFP25 | Get Quote |
| 7020R4-48TX-4QC | 880 Gbps (1.76 Tbps) | 4 x QSFP 100G, 48 x 1G/10G RJ45 | Get Quote |
| 7020R4M-48TX-4QC | 880 Gbps (1.76 Tbps) | 4 x QSFP 100G, 48 x 1G/10G RJ45 | Get Quote |
