Wi-Fi 7 Access Point

Arista O-435E

Arista O-435E is a ruggedized enterprise-grade, outdoor 6 stream Wi-Fi 7 AP with concurrent 6 GHz, 5 GHz and 2.4 GHz band radios supporting 2 stream 802.11be operation.

Request Pricing View Datasheet

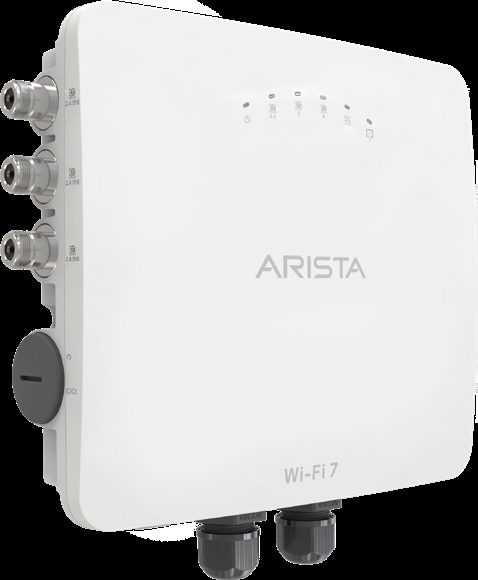

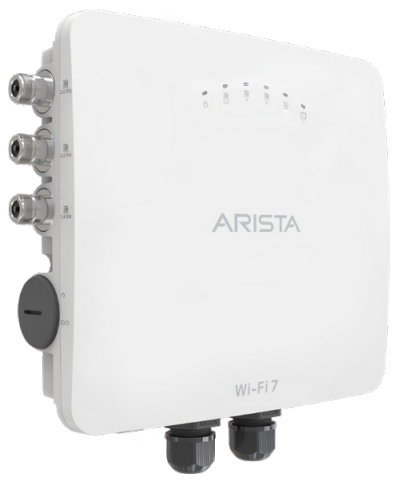

Arista O-435E

Arista O-435E is a ruggedized enterprise-grade, outdoor 6 stream Wi-Fi 7 AP with concurrent 6 GHz, 5 GHz and 2.4 GHz band radios supporting 2 stream 802.11be operation. The O-435E has integrated IoT support, integrated GNSS and an additional multi-function, tri-band radio to provide security, network assurance and AI/ML driven troubleshooting. O-435E provides Wi-Fi 7 performance improvements to deliver higher capacity and more efficient use of the available spectrum. Utilizing the latest W-Fi 7 technologies, Multi-link operation, Preamble Puncturing, Uplink/ Downlink OFDMA, Uplink/Downlink MU-MIMO coupled with 2 spatial streams in all operating bands, the O-435E delivers high performance even in challenging environments. The O-435E is a Standard Power access point which supports Automated Frequency Co-ordination (AFC) for operating in the 6 GHz band. The O-435E is ideal for delivering high-performance in harsh or outdoor environments such as schools and universities, outdoor sections of hotel and enterprise campuses, warehouses, manufacturing yards, stadiums and sports arenas, malls, public hotspots and other municipal Wi-Fi deployments.

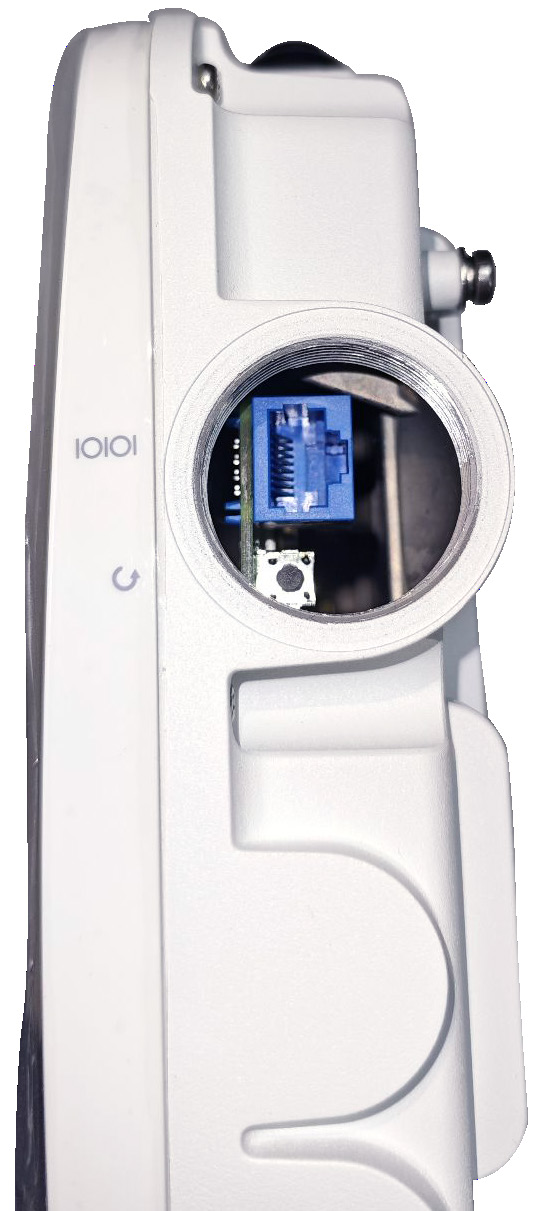

Arista O-435E overview

Features and Benefits

The capabilities that set Arista O-435E apart.

Key Features

Full featured Wi-Fi 7, 6 Stream AP

Three 2x2:2 access radios

(6 GHz, 5 GHz & 2.4 GHz)

Versatile, multifunction Radio*

Industry leading, continuous WIPS

Better RRM decisions

from continuous spectral visibility
View all features in the datasheet

Talk to an Arista networking specialist

Get pre-sales help sizing and configuring Arista O-435E for your network — from leaf/spine design to EOS and CloudVision integration.

Talk to a specialist

Technical Specifications

Hardware and software metrics extracted directly from the official Arista datasheet.

  • Physical Dimensions
    262mm X 256mm X 59mm/10.3” X 10.1” X 2.3”
  • Weight
    2 Kg / 4.4 lbs
  • Operating Temperature
    -40oC ~ +65oC (-40oF ~ +149oF)
  • Storage Temperature
    -40oC ~ +70oC (-40oF ~ +158oF)
  • MTBF
    263780 hours @ 65 °C
    1077089 hours @ 25 °C
  • Humidity
    5-95% non-condensing
  • Power consumption
    33 W (max)
  • RAM and Flash
    3 GB RAM and 512 MB Flash

  • LAN1
    5 GbE, PoE++ compliant, MACsec capable*
    Connector Type: IP67 rated weatherproof RJ-45
    Speed/Protocol: 100M/1G/2.5G/5G Ethernet
    Recommended cabling - CAT6
  • LAN2
    PSE
    Connector Type: IP67 rated weatherproof RJ-45
    Speed/Protocol: 100M/1G/2.5G/5G 802.3af PoE
    Recommended cabling - CAT6
  • Reset
    Reset to factory default settings
    Connector Type: Pin hole push button
    Let the AP boot up fully, ensure that all the LEDs are ON. Press the reset button for 15 seconds.
  • Console Port
    Establish ‘config shell’ terminal session via serial connection
    Connector Type: RJ-45
    RS232 Serial (115200 bps)
    Data bits:8; Stop bits: 1
    Parity: None
    Flow Control: None

  • Input Power
    This is an 802.3bt Class 6 device.
    802.3bt Class 6 PoE++: Full function
    802.3at Class 4 PoE+: LAN2 PSE off
  • Number of Radios
    3 access radios; one 2x2:2 2.4 GHz, 5 GHz, and 6 GHz radios for simultaneous tri-band access.
    1 multi-function 2x2 radio for continuous WIPS and client connectivity tests
  • Max Clients Supported
    783 (271 clients on 2.4 GHz radio, 256 clients on 5 GHz radio and 256 clients on 6 GHz radio)
  • MU-MIMO
    2X2 on 2.4 GHz, 5 GHz, and 6 GHz radios
  • Number of Spatial Streams
    2 for 6 GHz radio, 2 for 5 GHz radio, 2 for 2.4 GHz radio, 2 for multipurpose radio
  • Maximum EIRP
    26 dBm on 5 GHz radio (max), 25 dBm on 6 GHz radio (max), and 26 dBm on 2.4 GHz radio (max)1
  • 80+80 MHz Non-Contiguous Channel Bonding
    No
  • Bandwidth Agility
    No
  • 3G/4G Macro and Small Cells Interference Mitigation
    Yes
  • Frequency Bands2
    2.4-2.4835 GHz, 4.9-5.0GHz, 5.15-5.25 GHz; (UNII-1), 5.25-5.35 GHz, 5.47-5.6 GHz, 5.650-5.725 GHz (UNII-2), 5.725-5.85 GHz (UNII-3)

  • Frequency Band (Scanning)
    All regions: 5.925 GHz – 6.425 GHz, 6.425 GHz - 6.525 GHz, 6.525 GHz – 6.875 GHz, 6.875GHz - 7.125 GHz
    USA & Canada (FCC/IC): 5.925 GHz – 6.425 GHz, 6.425 GHz - 6.525 GHz, 6.525 GHz – 6.875 GHz, 6.875GHz - 7.125 GHz
    Europe (ETSI): 5.925 GHz – 6.425 GHz
  • Frequency Band (Transmission)
    All regions: 5.925 GHz – 6.425 GHz, 6.425 GHz - 6.525 GHz, 6.525 GHz – 6.875 GHz, 6.875GHz - 7.125 GHz
    USA & Canada (FCC/IC): 5.925 GHz – 6.425 GHz, 6.425 GHz - 6.525 GHz, 6.525 GHz – 6.875 GHz, 6.875GHz - 7.125 GHz
    Europe (ETSI): 5.925 GHz – 6.425 GHz
  • Modulation Type
    OFDM / OFDMA
  • Peak Data Rate
    5.75 Gbps
  • Antenna
    External with N type connectors
View datasheet for full specs
