Wi-Fi 6E Access Point

Quad radio, 4X4 6GHz, 4X4 5GHz, 4X4 2.4GHz and 2x2 tri-band scan radio Wi-Fi 6E access point

Arista C-360 is a high-end Wi-Fi 6E enterprise grade access point featuring concurrent 6GHz, 5GHz and 2.4GHz 4 stream 802.11ax operation, integrated IoT support and an additional multi-function, tri-band radio to provide security, network assurance and enabled and AI/ML driven troubleshooting.

C-360

C-360 Wi-Fi 6E access point provides the highest capacity, best spectrum utilization and flexibility to deliver industry leading user experience in high density environments that require best performance and security. Utilizing the latest technologies, Uplink/ Downlink OFDMA, Uplink/Downlink MU-MIMO coupled with 4 spatial streams in all operating bands , the C-360 delivers truly unmatched performance even in the most challenging environments. C-360 is also designed for worldwide operation and investment protection. It also allows dual-5GHz mode where the 6GHz radio is reconfigured to operate in the upper part of the 5GHz band while the 5GHz radio operates in the lower part of the 5GHz band. C-360 is ideal for critical, high-density networks serving a high volume of diverse clients and applications. Common deployment scenarios include large enterprises with national and international locations, university campuses and large healthcare and hospital premises.

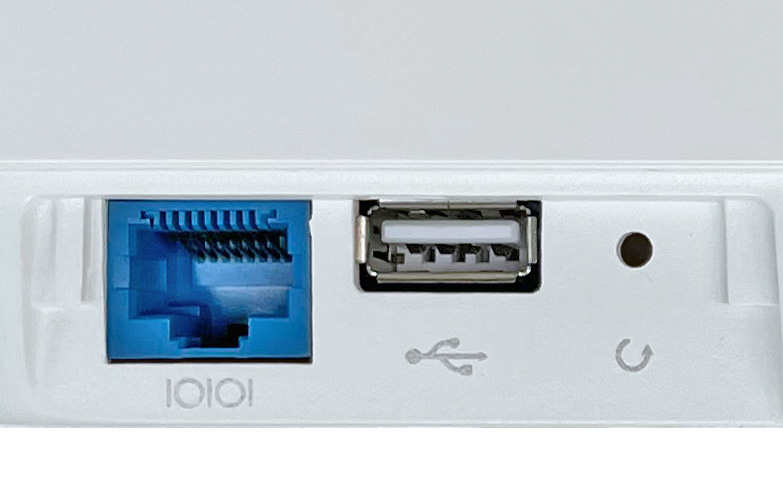

C-360 overview

Features and Benefits

The capabilities that set C-360 apart.

Key Features

Full featured Wi-Fi 6E, 12 Stream AP

Tri-band access radios

4x4:4 6GHz + 4x4:4 5GHz + 4x4:4 2.4GHz

Arista CloudVision® Managed Wi-Fi

CloudVision Wi-Fi managed platform

The C-360 is an Arista CloudVision Wi-Fi managed platform. Available as a cloud service or on-premises management platform, CloudVision Wi-Fi leverages a purpose built cloud architecture delivering cloud grade analytics and automation to enterprise Wi-Fi networks. CloudVision ensures high reliability, scalability, security and cost effectiveness.

Talk to an Arista networking specialist

Get pre-sales help sizing and configuring C-360 for your network — from leaf/spine design to EOS and CloudVision integration.

Talk to a specialist

Technical Specifications

Hardware and software metrics extracted directly from the official Arista datasheet.

  • Physical Dimensions
    230mm x 230mm x 42.5mm/9.1” X 9.1” X 1.67”
  • Weight
    1.45 Kg / 3.2 lb
  • Operating Temperature
    0oC ~ +45oC (+32oF ~ +113oF)
  • Storage Temperature
    -40oC ~ +70oC (-40oF ~ +158oF)
  • MTBF
    201,653 @ 25 °C
    83,308 @ 45 °C
  • Humidity
    0-95% non-condensing
  • Power consumption
    39 W (max)
  • Processor and RAM
    1 GB x 2 RAM and 1 GB Flash
  • Physical security
    Kensington lock slot

  • Power
    12V DC
    5.5mm overall diameter / 2.1mm center pin hole
    N/A
  • LAN1
    10 GbE, PoE++ compliant, MACsec capable*
    RJ-45
    100M/1G/2.5G/5G/10G Ethernet
    Recommended cabling - CAT6E
    * MACsec capabilities will be activated via a future software update.
  • LAN2
    10 GbE, PoE++compliant, MACsec capable*
    RJ-45
    100M/1G/2.5G/5G/10G Ethernet
    Recommended cabling - CAT6E
    * MACsec capabilities will be activated via a future software update.
  • Console
    Establish ‘config shell’ terminal session via serial connection
    RJ-45
    RS232 Serial (115200 bps)
    Data bits:8; Stop bits: 1
    Parity: None
    Flow Control: None
  • USB
    USB 3.0 port
    USB Type-A
    Future use
  • Reset
    Reset to factory default settings port
    Pin hole push button
    Let the AP boot up fully, ensure that all the LEDs are ON. Press the reset button for 15 seconds

  • Input Power
    PoE++ and 12V DC (5.5mm overall diameter/2.1mm center pin hole)
    • Full function
    • Hitless PoE failover between the two ethernet ports
    PoE+
    • USB off
    • Max EIRP1 of 24 dBm at 6GHz & 5GHz, 19 dBm at 2.4 GHz
    • 2.4 GHz limited to 2x2 operation
  • Number of Radios
    3 access radios; 4x4:4 2.4GHz, 4x4:4 5GHz and 4x4:4 6GHz radio for simultaneous tri-band access.
    1 multi-function 2x2 radio for continuous WIPS and client connectivity tests
    1 BLE radio
  • Max Clients Supported
    1280 (256 clients on 2.4 GHz radio, 512 clients on 5 GHz radio and 512 clients on 6 GHz radio)
  • Number of Spatial Streams
    4 each per access radio, 2 for multipurpose radio
  • Maximum EIRP
    28.1 dBm on 6GHz, 27 dBm on 5GHz radio and 28.6 dBm on 2.4GHz radio (max)1
  • 80+80MHz Non-Contiguous Channel Bonding
    No
  • Bandwidth Agility
    No
  • 3G/4G Macro and Small Cells Interference Mitigation
    Yes
  • Frequency Bands2
    2.4-2.4835 GHz, 5.15-5.25 GHz; (UNII-1), 5.25-5.35 GHz, 5.47-5.6 GHz, 5.650-5.725 GHz (UNII-2), 5.725-5.85 GHz (UNII-3), 5.925 GHz – 6.425 GHz (UNII-5), 6.425 GHz - 6.525 GHz (UNII-6), 6.525 GHz – 6.875 GHz (UNII-7), 6.875GHz - 7.125 GHz (UNII-8)
  • Dynamic Frequency Selection
    Supported in compliance to all latest amendments from FCC, CE, IC, CB, TELEC, KCC regarding certifications.

  • Frequency Band (Scanning)
    All regions: 5.925 GHz – 6.425 GHz, 6.425 GHz - 6.525 GHz, 6.525 GHz – 6.875 GHz, 6.875GHz - 7.125 GHz
  • Frequency Band (Transmission)
    USA & Canada (FCC/IC): 5.925 GHz – 6.425 GHz, 6.425 GHz - 6.525 GHz, 6.525 GHz – 6.875 GHz, 6.875GHz - 7.125 GHz
    Europe (ETSI): 5.925 GHz – 6.425 GHz
  • Modulation Type
    OFDM / OFDMA
  • Peak Data Rate
    4.8Gbps
  • Antenna
    Integrated modular high efficiency PIFA antenna x4 (peak gain: 6.3 dBi)
