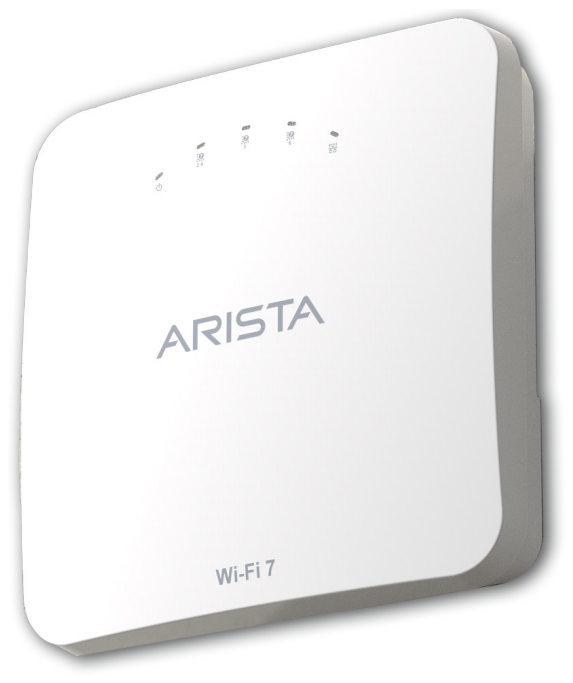

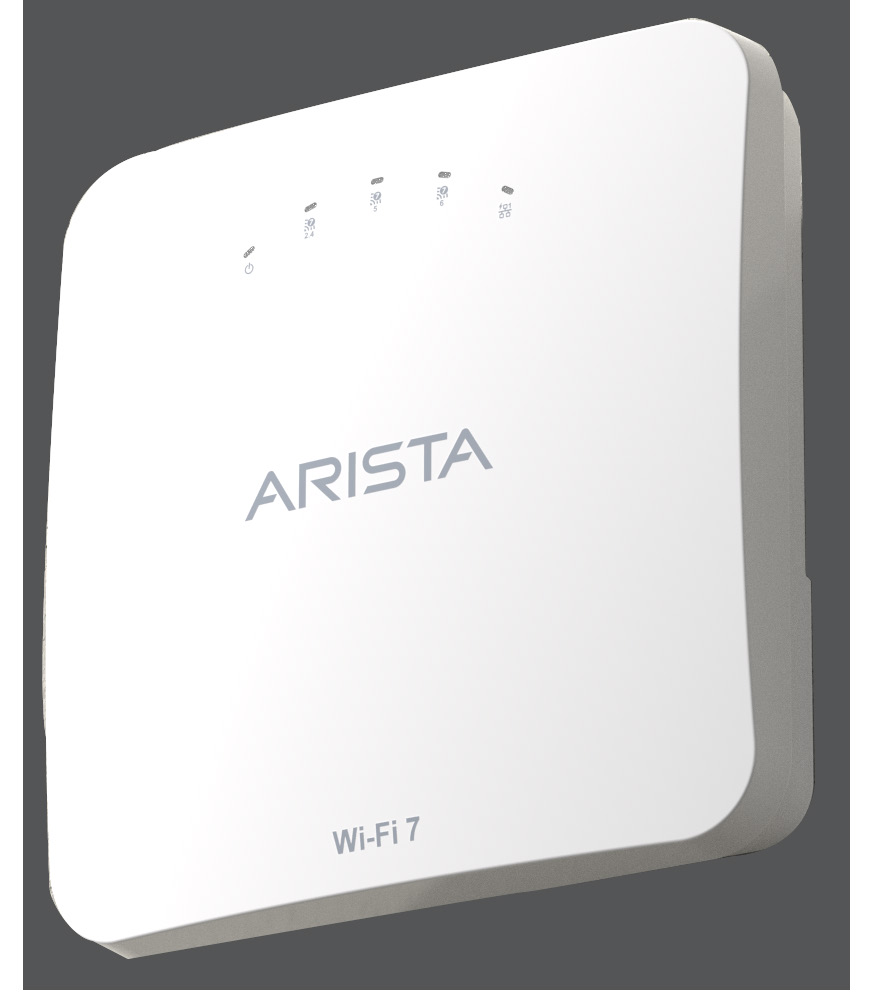

Wi-Fi 7 Access Point

C-400

The Arista C-400 is a Wi-Fi 7 enterprise-grade access point featuring concurrent 6GHz, 5GHz, and 2.4GHz 2-stream 802.11be operation, supporting data rates up to 5.76 Gbps for 6 GHz radios.

Request Pricing View Datasheet
C-400

Aesthetic Design and High Performance
Arista C-400 is a Wi-Fi 7 enterprise-grade access point featuring concurrent 6 GHz, 5 GHz and 2.4 GHz 2-stream 802.11be operation, supporting data rates up to 5.76 Gbps for 6 GHz radios.

C-400 Capabilities
C-400 Wi-Fi 7 access point provides performance improvements for low/medium indoor traffic. Utilizing the latest Wi-Fi 7 technologies — Multi-link Operation, Preamble Puncturing, Uplink/Downlink OFDMA, Uplink/Downlink MU-MIMO — coupled with 2 spatial streams in all operating bands, the C-400 is ideal for medium- and low-density networks serving a moderate volume of diverse clients and applications. Common deployment scenarios include schools, remote offices, meeting rooms, and enterprise campuses.

Arista CloudVision® Managed Wi-Fi
The C-400 is an Arista CloudVision Cognitive Unified Edge (CV-CUE) managed platform. Available as a cloud service or on-premises management platform, CV-CUE leverages a purpose-built cloud architecture delivering cloud-grade analytics and automation to enterprise Wi-Fi networks. CloudVision ensures high reliability, scalability, security, and cost effectiveness.

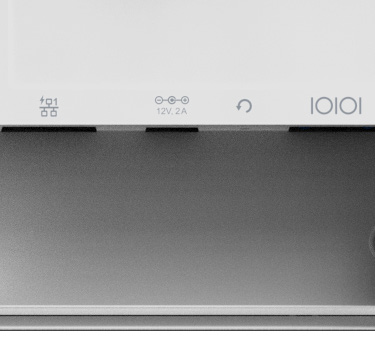

C-400 overview

Features and Benefits

The capabilities that set C-400 apart.

Key Features

Indoor Wi-Fi 7, 6 Stream AP

Three 2x2:2 access radios

(6 GHz, 5 GHz & 2.4 GHz)

C-400 Capabilities

Performance improvements for low/medium indoor traffic

Utilizing the latest W-Fi 7 technologies, Multi-link operation, Preamble Puncturing, Uplink/ Downlink OFDMA, Uplink/Downlink MU-MIMO coupled with 2 spatial streams in all operating bands, the C-400 is ideal for medium and low density networks serving a moderate volume of diverse clients and applications. Common deployment scenarios include schools, remote offices, meeting rooms, and enterprise campuses.
View all features in the datasheet

Talk to an Arista networking specialist

Get pre-sales help sizing and configuring C-400 for your network — from leaf/spine design to EOS and CloudVision integration.

Talk to a specialist

Technical Specifications

Hardware and software metrics extracted directly from the official Arista datasheet.

  • Power
    12V DC, 2 A (5.5mm *2.1mm *L9.5mm plug)
  • LAN1
    5 GbE, PoE+ compliant, MACsec capable* RJ-45 (100M/1G/2.5G/5G Ethernet, Recommended cabling - CAT6A)
  • Console
    RJ-45 (RS232 Serial (115200 bps) Data bits:8; Stop bits: 1 Parity: None Flow Control: None)
  • Reset
    Pin hole push button (Let the AP boot up fully, ensure that all the LEDs are ON. Press the reset button for 15 seconds)

  • Physical Dimensions
    185mm x 185mm x 45mm/7.3” X 7.3” X 1.8”
  • Weight
    1.09 Kg / 2.4 lb
  • Operating Temperature
    0oC ~ +45oC (+32oF ~ +113oF)
  • Storage Temperature
    -40oC ~ +70oC (-40oF ~ +158oF)
  • MTBF
    278,027 hours @ 30°C, 266,690 hours @ 45°C
  • Humidity
    5 - 95% non-condensing
  • Power consumption
    22 W (max)
  • RAM and Flash
    2 GB RAM, 8 GB eMMC and 16 MB NOR Flash
  • Physical security
    Kensington lock slot

  • Input Power
    • 802.3at PoE+ and 12V DC, 2 A (5.5mm overall diameter/2.1mm center pin hole) - Full function
    • 802.3af PoE - 2.4 GHz radio operates at 1x1, Ethernet speed reduced to 1Gbps
  • Number of Radios
    3 access radios; 2x2:2 2.4GHz, 2x2:2 5GHz and 2x2:2 6GHz radio for simultaneous tri-band access.
  • Max Clients Supported
    783 (271 clients on 2.4 GHz radio, 256 clients on 5 GHz radio and 256 clients on 6 GHz radio)
  • Number of Spatial Streams
    2 per access radio
  • Maximum EIRP
    23 dBm on 6GHz, 25 dBm on 5GHz radio and 27 dBm on 2.4GHz radio (max)1
  • 80+80MHz Non-Contiguous Channel Bonding
    No
  • Bandwidth Agility
    No
  • 3G/4G Macro and Small Cells Interference Mitigation
    Yes
  • Frequency Bands2
    2.4-2.4835 GHz, 5.15-5.25 GHz; (UNII-1), 5.25-5.35 GHz, 5.47-5.6 GHz, 5.650-5.725 GHz (UNII-2), 5.725-5.85 GHz (UNII-3), 5.925 GHz – 6.425 GHz (UNII-5), 6.425 GHz - 6.525 GHz (UNII-6), 6.525 GHz – 6.875 GHz (UNII-7), 6.875GHz - 7.125 GHz (UNII-8)
  • Dynamic Frequency Selection
    Supported in compliance to all latest amendments from FCC, CE, IC, CB, TELEC, KCC regarding certifications.

  • Frequency Band (Scanning)
    All regions: 5.925 GHz – 6.425 GHz, 6.425 GHz - 6.525 GHz, 6.525 GHz – 6.875 GHz, 6.875GHz - 7.125 GHz
  • Frequency Band (Transmission)
    USA & Canada (FCC/IC): 5.925 GHz – 6.425 GHz, 6.425 GHz - 6.525 GHz, 6.525 GHz – 6.875 GHz, 6.875GHz - 7.125 GHz; Europe (ETSI): 5.925 GHz – 6.425 GHz
  • Modulation Type
    OFDM / OFDMA
  • Peak Data Rate
    5.76 Gbps
  • Antenna
    Integrated modular high efficiency antenna x2 (peak gain: 5 dBi)
View datasheet for full specs
