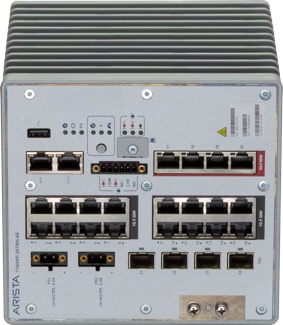

CCS-710HXP Series Switches
The Arista CCS-710HXP fanless ruggedized power over ethernet switch series is designed to extend the Cognitive Campus network into an industrial network infrastructure where extended temperature and vibration proof working conditions are required.
The Arista CCS-710HXP fanless ruggedized power over ethernet switch series is designed to extend the Cognitive Campus network into an industrial network infrastructure where extended temperature and vibration proof working conditions are required. These switches are also rated for the IP30 that offers protection against 2.5 mm particles entering inside the switch. With multiple mounting options, the CCS-710HXP series switches are well suited for any deployment where sound and space are as important.
Features and Benefits
The capabilities that set CCS-710HXP Series Switches apart.
Product Highlights
Power over Ethernet plus 10G
- 710HXP-28TXH-4S (1RU rack mount)
- 24x 10M-1GbE RJ45 @ 60W
- 4x 100M-10GbE RJ45 @ 90W
- 4 x 1/10G SFP+ Uplinks
- 710HXP-20TNH-4S (DIN rail mount)
- 16x 10M-1GbE RJ45 @ 30W
- 4x 100M-5GbE RJ45 @ 90W
- 4 x 1/10G SFP+ Uplinks
Hardware
Fanless for silent operation
Mode button for user reset
Talk to an Arista networking specialist
Get pre-sales help sizing and configuring CCS-710HXP Series Switches for your network — from leaf/spine design to EOS and CloudVision integration.
Talk to a specialistTechnical Specifications
Hardware and software metrics extracted directly from the official Arista datasheet.
-
Ingress / Egress ACLs1K / 512
-
MAC addresses16K
-
IPv4/v6 Hosts8K / 4K
-
IPv4/v6 Routes2K / 512
-
ECMP64-way
-
IGMP Groups1024
-
Feature/Model710HXP-28TXH-4S
-
Ports24x1G RJ45, 4x 10mG 4x 1/10G SFP
-
10M-1G UTP (30W)1N/A
-
10M-1G UTP (60W)224
-
mGig UTP (90W)24x 10mG
-
10G SFP+4
-
Throughput (FDX)208 Gbps
-
Packets/Second95 Mpps
-
Latency (RJ-45)1.8 microseconds
-
CPUQuad Core ARM
-
Feature/Model710HXP-20TNH-4S
-
Ports16x1G RJ45, 4x 5mG 4x 1/10G SFP
-
10M-1G UTP (30W)116
-
10M-1G UTP (60W)2N/A
-
mGig UTP (90W)24x 5mG
-
10G SFP+4
-
Throughput (FDX)144 Gbps
-
Packets/Second95 Mpps
-
Latency (RJ-45)1.8 microseconds
-
CPUQuad Core ARM
-
10GBASE-CRSFP+ to SFP+: 0.5m-5m
-
10GBASE-AOCSFP+ to SFP+: 3m-30m
-
10GBASE-SRL100m
-
10GBASE-SR300m
-
10GBASE-LRL1km
-
10GBASE-LR10km
-
10GBASE-ER40km
-
100Mb TX,1GbE SX/LX/Yes
-
SFP-1G-LX-HTBD
-
SFP-10G-SR-HTBD
