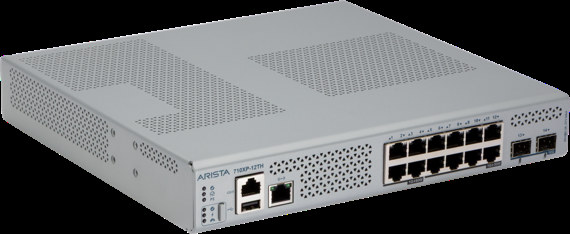

CCS-710XP Compact Series Switches
The Arista CCS-710XP power efficient campus edge switches include a fanless model and also models with fans. The fanless compact power over ethernet switch was designed to extend the Cognitive Campus network into space-constrained and quiet environments.
The Arista CCS-710XP power efficient campus edge switches include a fanless model and also models with fans. The fanless compact power over ethernet switch was designed to extend the Cognitive Campus network into space-constrained and quiet environments such as conference rooms, retail showrooms, broadcast control rooms and small enclosures like ATMs. With multiple mounting options, the CCS-710 series switches are well suited for any deployment where sound and space are as important as reliable network operations.
Features and Benefits
The capabilities that set CCS-710XP Compact Series Switches apart.
Product Highlights

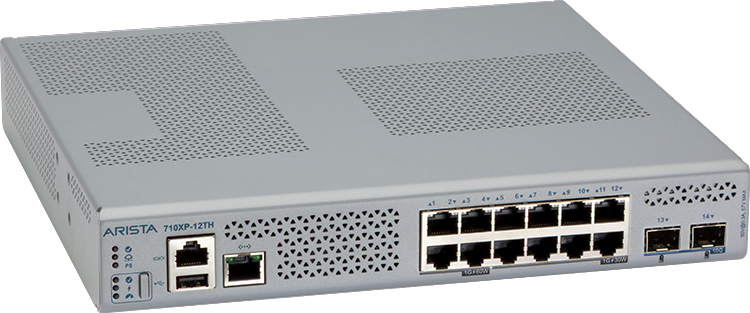

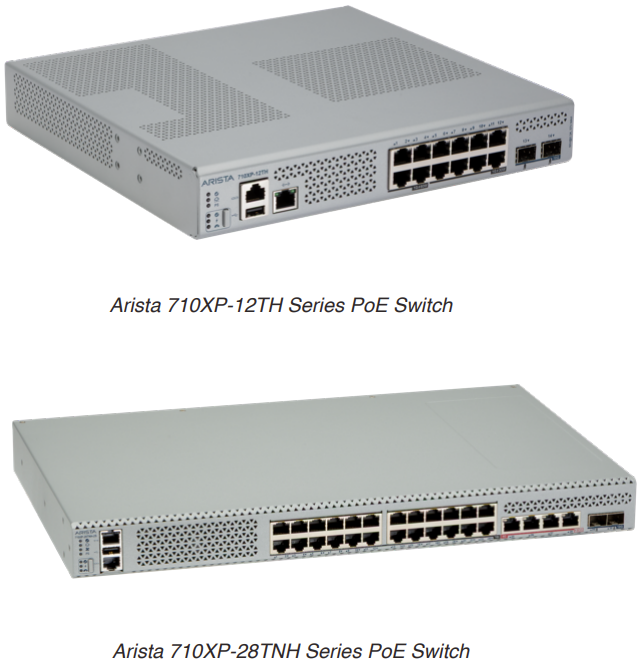

710XP-12TH-2S
- 8x 10M-1GbE RJ45 @ 30W
- 4x 10M-1GbE RJ45 @ 60W
- 2 x 1/10G SFP+ Uplinks
- Fanless for silent operation
- Integrated single power supply
- Small form factor for constrained spaces

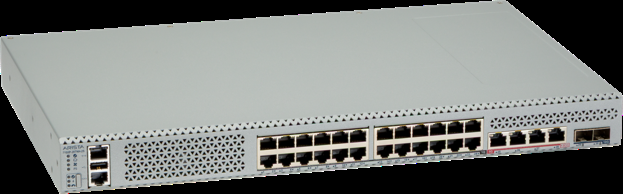

710XP-28TNH-2S
- 24x 10M-1GbE RJ45 @ 30W
- 4x 100M-5GbE RJ45 @ 90W
- 2 x 1/10G SFP+ Uplinks
- Integrated single power supply, fans
Hardware
None
- Built in single power supply
- Mode button for user reset
- Secureboot system with Hardware Root of Trust
Talk to an Arista networking specialist
Get pre-sales help sizing and configuring CCS-710XP Compact Series Switches for your network — from leaf/spine design to EOS and CloudVision integration.
Talk to a specialistTechnical Specifications
Hardware and software metrics extracted directly from the official Arista datasheet.
-
Ingress / Egress ACLs1K / 512
-
MAC addresses16K
-
IPv4/v6 Hosts8K / 4K
-
IPv4/v6 Routes2K / 512
-
ECMP64-way
-
IGMP Groups1024
-
Ports (710XP-12TH-2S)12 RJ45, 2 10G SFP
-
Ports (710XP-28TNH-2S)24x1G, 4x5 mG RJ45, 2 10G SFP
-
10M-1G UTP (30W)1 (710XP-12TH-2S)8
-
10M-1G UTP (30W)1 (710XP-28TNH-2S)24
-
10M-1G UTP (60W)2 (710XP-12TH-2S)4
-
10M-1G UTP (60W)2 (710XP-28TNH-2S)N/A
-
100M-5G UTP (90W)2 (710XP-12TH-2S)N/A
-
100M-5G UTP (90W)2 (710XP-28TNH-2S)4
-
10G (710XP-12TH-2S)2
-
10G (710XP-28TNH-2S)2
-
10GBASE-CRSFP+ to SFP+: 0.5m-5m
-
10GBASE-AOCSFP+ to SFP+: 3m-30m
-
10GBASE-SRL100m
-
10GBASE-SR300m
-
10GBASE-LRL1km
-
10GBASE-LR10km
-
10GBASE-ER40km
-
100Mb TX,1GbE SX/LX/TXYes
-
Supply (180W fixed internal PSU)180W fixed internal PSU
-
Supply (460W fixed internal PSU)460W fixed internal PSU
-
PoE Power available (180W fixed internal PSU)150W
-
PoE Power available (460W fixed internal PSU)360W
-
Input Voltage (180W fixed internal PSU)100-240VAC
-
Input Voltage (460W fixed internal PSU)100-240VAC
-
Input Current (180W fixed internal PSU)2.78-5.18A
-
Input Current (460W fixed internal PSU)2.78-5.18A (?)
-
Input Frequency (180W fixed internal PSU)50-60Hz
-
Input Frequency (460W fixed internal PSU)50-60Hz
