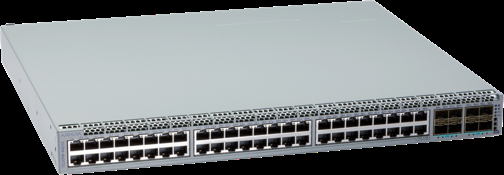

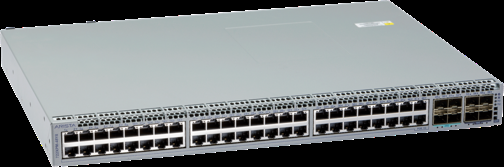

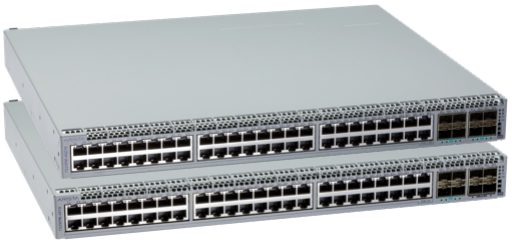

Arista 722XPM Series PoE Switches
The CCS-722XPM series delivers wirespeed connectivity for all campus user workloads under the management and monitoring of Arista cognitive campus services, supporting MACsec on all ports and offering flexible connection options for user desktops, PoE appliances, and IoT devices.
Designed for the demands of the interconnected IoT enabled campus, the CCS-722XPM series delivers wirespeed connectivity for all campus user workloads under the management and monitoring of Arista cognitive campus services. The Arista Cognitive Campus CCS-722XPM series switches can support MACsec on all ports. The CCS-722XPM offer a variety of connection options for user desktops, PoE appliances and IoT devices. Managed 802.3af/at/bt power services deliver up to 60W per RJ45 port and speeds ranging from 10Mbps to 2.5Gbps. A choice of 25G and 10G uplinks enable 100Mbps to 25Gbps deliver network design flexibility and scalability.
Features and Benefits
The capabilities that set CCS-722XPM Series PoE Switches apart.
Product Highlights
722XPM-48ZY8
- 48 x mGig (100M - 2.5Gb) RJ45 @ 60W
- Uplinks: 8x 25G
- MACsec (256-bit) support with downlink ports
- MACsec (256-bit) support with uplink ports
722XPM-48Y4
- 48 x 10M-1GbE RJ45 @ 30W
- Uplinks: 4x 25G, 4 x10G
- MACsec (256-bit) support with downlink ports
- MACsec (256-bit) support with uplink ports
Layer 2 Features
802.1w Rapid Spanning Tree
802.1s Multiple Spanning Tree Protocol
Talk to an Arista networking specialist
Get pre-sales help sizing and configuring CCS-722XPM Series PoE Switches for your network — from leaf/spine design to EOS and CloudVision integration.
Talk to a specialistTechnical Specifications
Hardware and software metrics extracted directly from the official Arista datasheet.
-
Ingress / Egress Security ACL2K / 512
-
MAC addresses64K
-
IPv4/v6 Hosts32K / 16K
-
IPv4/v6 Routes16K / 6K
-
ECMP64-way
-
STP Instances64 (MST)/254 (RPVST+)
-
IGMP Groupsup to 4K
-

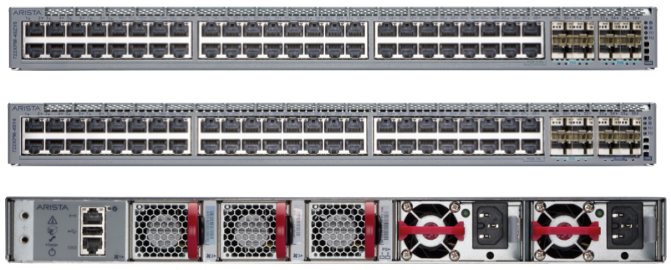

Ports (722XPM-48ZY8)48 RJ45, 8 25G SFP
-
Ports (722XPM-48Y4)48 RJ45, 4 25G and 4 10G SFP
-
10M-1G UTP (30W) (722XPM-48ZY8)N/A
-
10M-1G UTP (30W) (722XPM-48Y4)48
-
100M-2.5G UTP (60W) (722XPM-48ZY8)48
-
100M-2.5G UTP (60W) (722XPM-48Y4)0
-
Max 10G ports (722XPM-48ZY8)8
-
Max 10G ports (722XPM-48Y4)8
-
Max 25G ports (722XPM-48ZY8)8
-
Max 25G ports (722XPM-48Y4)4
-
Power Supplies Supported (722XPM-48ZY8)650W, 1050W, 2000W, 500W (DC)
-
Power Supplies Supported (722XPM-48Y4)650W, 1050W, 500W (DC)
-
Default Power Supply (722XPM-48ZY8)1050W
-
Default Power Supply (722XPM-48Y4)1050W
-
System Power (Typical/Max) (722XPM-48ZY8)134W/160W
-
System Power (Typical/Max) (722XPM-48Y4)83W/102W
-
Default Available PoE Power (722XPM-48ZY8)916W
-
Default Available PoE Power (722XPM-48Y4)967W
-
Single 650W AC PS (722XPM-48ZY8)516W/490W
-
Single 650W AC PS (722XPM-48Y4)567W/548W
-
10GBASE-CRSFP+ to SFP+: 0.5m-5m
-
10GBASE-AOCSFP+ to SFP+: 3m-30m
-
10GBASE-T100m
-
10GBASE-SRL100m
-
10GBASE-SR300m
-
10GBASE-LRL1km
-
10GBASE-LR10km
-
10GBASE-ER40km
-
10GBASE-ZR80km
-
10GBASE-DWDM80km
