Wi-Fi 7 Access Point

Tri radio, 2X2 6GHz, 2X2 5GHz, 2X2 2.4GHz Wi-Fi 7 access point

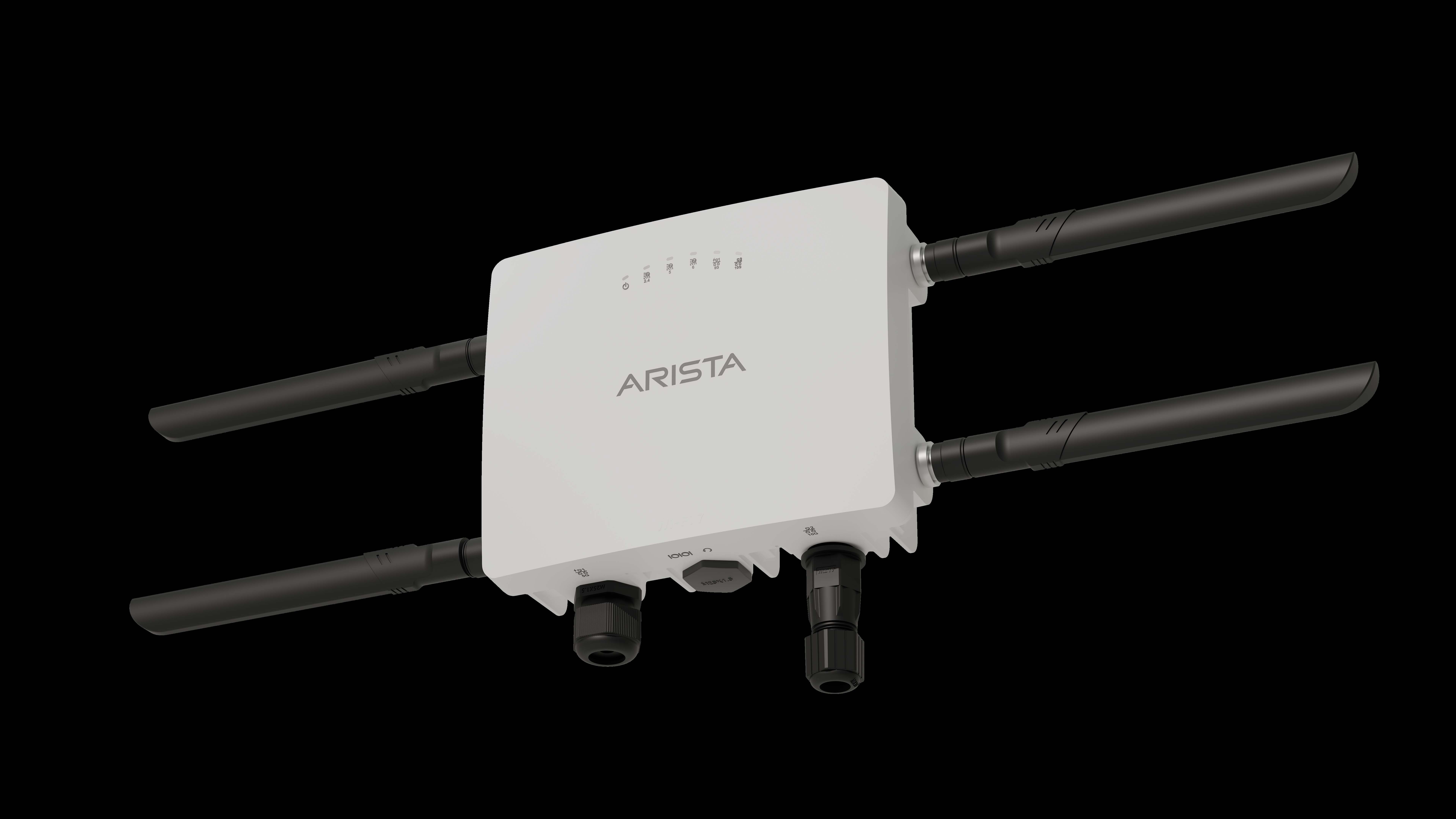

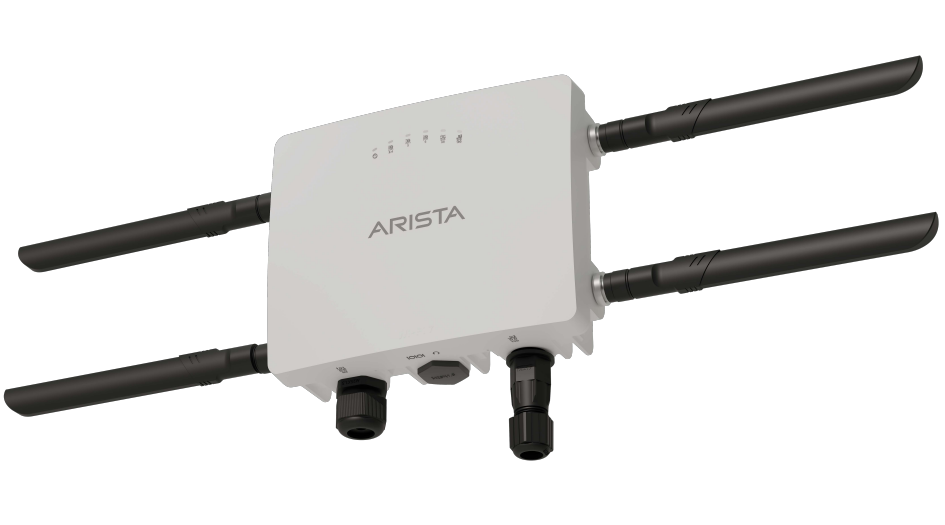

Arista O-405E is a ruggedized, outdoor Wi-Fi 7 enterprise grade access point featuring concurrent 6GHz, 5GHz and 2.4GHz 2 stream 802.11be operation, supporting data rates upto 5.76 Gbps for 6 GHz radios.

Request Pricing View Datasheet
O-405E

Arista O-405E is a ruggedized, outdoor Wi-Fi 7 enterprise grade access point featuring concurrent 6GHz, 5GHz and 2.4GHz 2 stream 802.11be operation, supporting data rates upto 5.76 Gbps for 6 GHz radios. O-405E Wi-Fi 7 access point provides performance improvements for low/medium outdoor traffic. Utilizing the latest W-Fi 7 technologies, Multi-link operation, Preamble Puncturing, Uplink/ Downlink OFDMA, Uplink/Downlink MU-MIMO coupled with 2 spatial streams in all operating bands, the O-405E is ideal for medium and low density networks serving a moderate volume of diverse clients and applications. Common deployment scenarios include harsh or outdoor environments such as schools and universities, outdoor sections of hotel and enterprise campuses, warehouses, manufacturing yards, stadiums and sports arenas, malls, public hotspots and other municipal Wi-Fi deployments. The O-405E is a Standard Power access point that supports Automated Frequency Co-ordination for operation in the 6 GHz band.

O-405E overview

Features and Benefits

The capabilities that set O-405E apart.

Key Features

Outdoor Wi-Fi 7, 6 Stream AP

Three 2x2:2 access radios

(6 GHz, 5 GHz & 2.4 GHz)

O-405E Capabilities

Plug and play provisioning

using either Cloud or On-premises deployments - Arista Access Points take less than two minutes to activate and configure after connecting to the cloud

Network controls

like NAT, Firewall and QoS implemented at the Access Point, ensuring faster and more reliable networks
View all features in the datasheet

Talk to an Arista networking specialist

Get pre-sales help sizing and configuring O-405E for your network — from leaf/spine design to EOS and CloudVision integration.

Talk to a specialist

Technical Specifications

Hardware and software metrics extracted directly from the official Arista datasheet.

  • Weight
    1.7 Kg/3.81 lbs
  • Operating Temperature
    -30oC ~ +65oC (-22oF ~ +149oF)
  • Storage Temperature
    -40oC ~ +70oC (-40oF ~ +158oF)
  • MTBF
    1,400,000 hours at 25oC, 1,100,00 hours at 65oC
  • Humidity
    5 - 95% non-condensing
  • Power consumption
    25 W (max)
  • RAM and Flash
    2 GB RAM, 8 GB eMMC and 16 MB NOR Flash
  • Physical security
    Kensington lock slot

  • LAN1
    5 GbE, PoE+ compliant, MACsec capable* RJ-45, 10M/100M/1G/2.5G/5G Ethernet Recommended cabling - CAT6A
  • SFP+
    10 Gbps SFP+ SFP+, 10G/1G SFP – Optical cable
  • Console
    Establish ‘config shell’ terminal session via serial connection RJ-45, RS232 Serial (115200 bps) Data bits:8; Stop bits: 1 Parity: None Flow Control: None
  • Reset
    Reset to factory default settings port Pin hole push button, Let the AP boot up fully, ensure that all the LEDs are ON. Press the reset button for 15 seconds

  • Input Power
    802.3at PoE+ • Full function
  • Number of Radios
    3 access radios; 2x2:2 2.4GHz, 2x2:2 5GHz and 2x2:2 6GHz radio for simultaneous tri-band access.
  • Max Clients Supported
    783 (271 clients on 2.4 GHz radio, 256 clients on 5 GHz radio and 256 clients on 6 GHz radio)
  • Number of Spatial Streams
    2 per access radio
  • Maximum EIRP
    31 dBm on 6GHz, 32 dBm on 5GHz radio and 33 dBm on 2.4GHz radio (max)1
  • 80+80MHz Non-Contiguous Channel Bonding
    No
  • Bandwidth Agility
    No
  • 3G/4G Macro and Small Cells Interference Mitigation
    Yes
  • Frequency Bands2
    2.4-2.4835 GHz, 5.15-5.25 GHz; (UNII-1), 5.25-5.35 GHz, 5.47-5.6 GHz, 5.650-5.725 GHz (UNII-2), 5.725-5.85 GHz (UNII-3), 5.925 GHz – 6.425 GHz (UNII-5), 6.525 GHz – 6.875 GHz (UNII-7)
  • Dynamic Frequency Selection
    Supported in compliance to all latest amendments from FCC, CE, IC, CB, TELEC, KCC regarding certific tions.

  • Frequency Band (Scanning)
    All regions: 5.925 GHz – 6.425 GHz, 6.525 GHz – 6.875 GHz
  • Frequency Band (Transmission)
    USA & Canada (FCC/IC): 5.925 GHz – 6.425 GHz, 6.525 GHz – 6.875 GHz; Europe (ETSI): 5.925 GHz – 6.425 GHz
  • Modulation Type
    OFDM / OFDMA
  • Peak Data Rate
    5.76 Gbps
  • Antenna
    External with N type connectors
View datasheet for full specs
